H11N3

H11N3, 6-pin dip high speed logic optocoupler, 250 mW,6 V, 30 mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.29~0.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.46 / Piece
500 ~ 1000 :	0.38 / Piece
1000 ~ 1500 :	0.29 / Piece

PartNumber:: H11N3

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-04

From Other Seller

Part Number:H11N3
US $0.29 - 0.46
Quantity:

piece

Product Summary

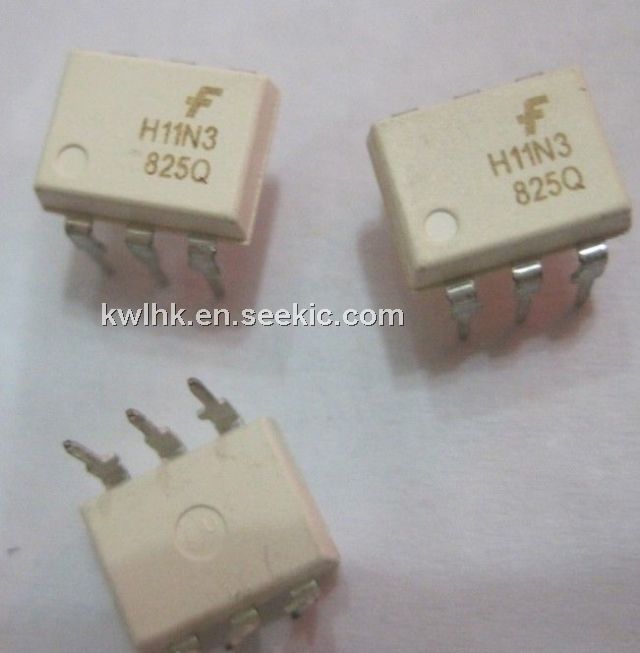

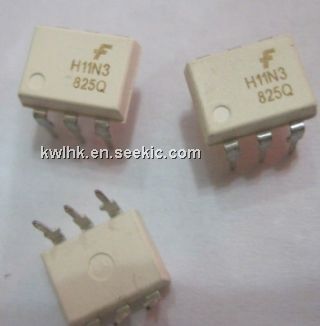

The H11N3 is a 6-pin dip high speed logic optocoupler. The H11N3 has a high speed integrated circuit detector optically coupled to an AlGaAs infrared emitting diode. The H11N3 incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse s haping. The H11N3 is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility. Applications are (1)Logic to logic isolator; (2)Programmable current level sensor; (3)Line receiver—eliminate noise and transient problems; (4)A.C. to TTL conversion—square wave shaping; (5)Interfaces computers with peripherals; (6)Isolated power MOS driver for power supplies.

Parametrics

H11N3 absolute maximum ratings: (1)Storage Temperature T STG All: -55 to +150 °C; (2)Operating Temperature T OPR All: -40 to +85 °C; (3)Lead Solder Temperature T SOL All: 260 for 10 sec °C; (4)Total Device Power Dissipation @ 25°C P D All: 250 mW; (5)Continuous Forward Current I F All: 30 mA; (6)Reverse Voltage V R All: 6 V; (7)Forward Current - Peak (1 μs pulse, 300 pps)I F (pk)All: 1.0 A; (8)LED Power Dissipation 25°C Ambient P D All: 120 mW.

Features

H11N3 features: (1)High data rate, 5 MHz typical (NRZ); (2)Free from latch up and oscilliation throughout voltage and temperature ranges.; (3)Microprocessor compatible drive; (4)Logic compatible output sinks 16 mA at 0.5 V maximum; (5)Guaranteed on/off threshold hysteresis; (6)Wide supply voltage capability, compatible with all popular logic systems; (7)High common mode transient immunity, 2000 V/μs minimum; (8)Fast switching t r = 7.5ns typical, t f = 12ns typical; (9)Underwriter Laboratory (UL)recognized—file #E90700; (10)VDE recognized – File#102497 – Add option V (e.g., H11N1VM).
